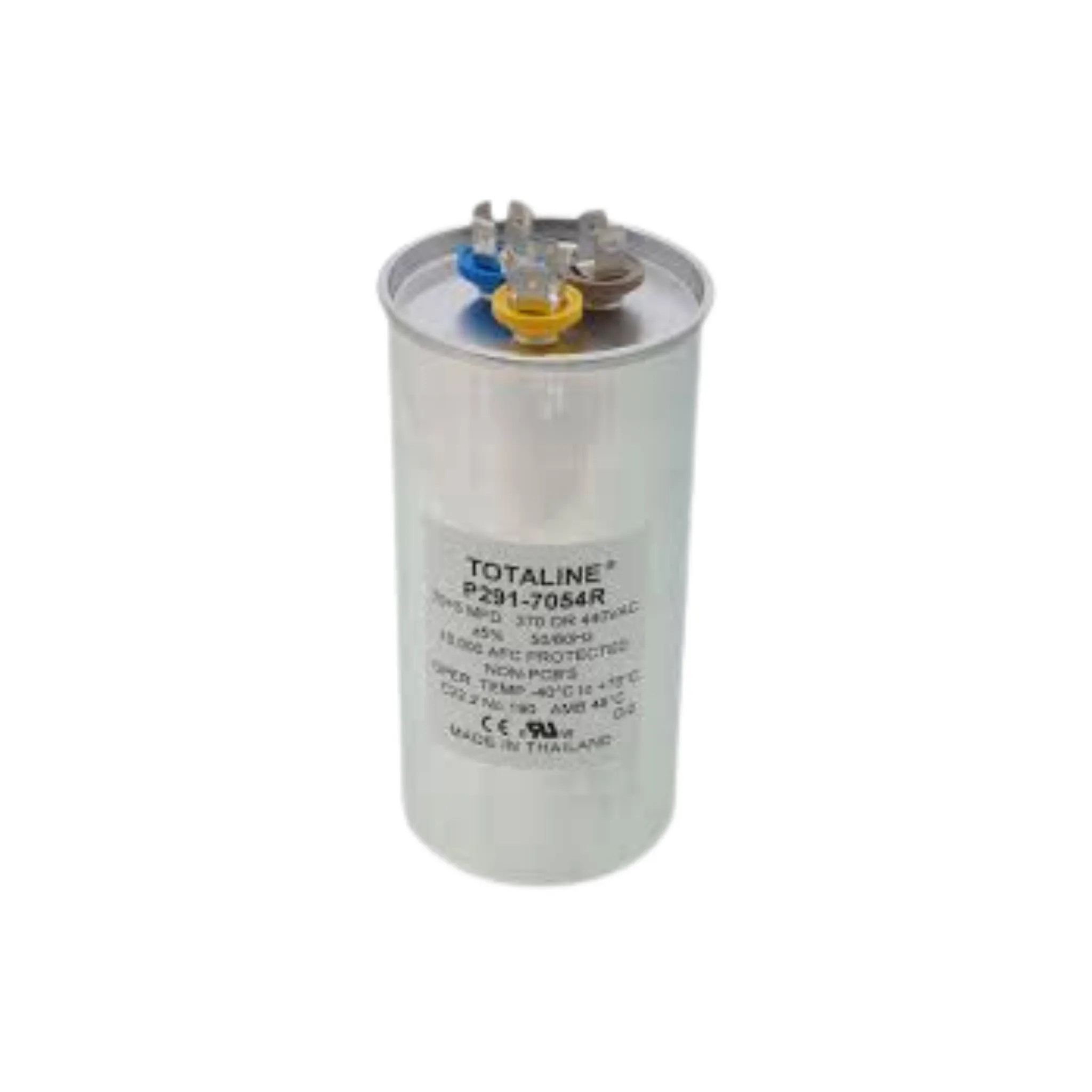

Carrier Totaline Capacitors

The Totaline capacitor series is designed for motor run applications where the capacitors operate within permanent split capacitor style motors. These capacitors should only be used on 50 or 60Hz systems.

Features:

• Reliability tested to meet 60,000 service hours, per United Technologies application parameters
• High grade metallized Polypropylene Film (5 to 12 microns thick)
• RoHS Compliant
• UL Approved with Pressure Sensitive interrupter of 1000 AFC
• Performance tested per United Technologies reliability requirements for capacitance ratings, power factor, dissipation factor and high voltage testing

Specifications:

Manufacturer: Carrier
Manufacturer Part Number: P291-7054R
Product Type: Round Dual Run Capacitor
Input Voltage: 440 VAC
Capacitance: 70/5 MFD
Dimensions: 3.05" x 6.65" x 2.95"
Weight: 2.0 lb.
